Informasjon

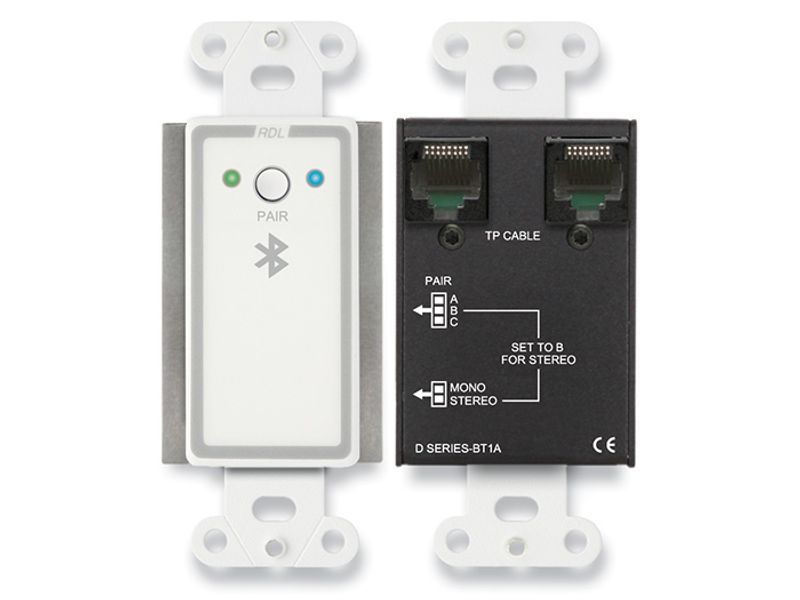

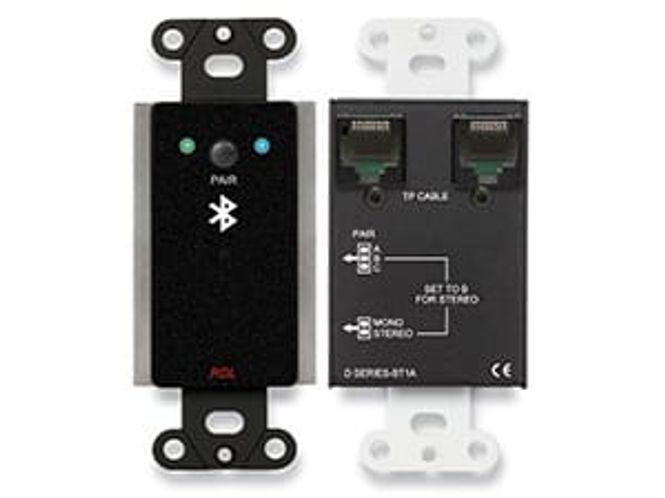

The D SERIES-BT1A modules are Bluetooth audio receiving modules compatible with RDL Format-A twisted pair receivers. The module receives stereo audio from the Bluetooth source when paired with a compatible Bluetooth-enabled device.
The stereo signal is sent to any RDL Format-A receiver through two Format-A pairs. A stereo/mono switch set by the installer permits summed mono audio to be sent over one switch-selected pair to the Format-A receiver. If set for stereo operation, an additional Format-A source (set to Pair A) may be daisy chained with the D SERIES-BT1A to a three-pair Format-A receiver. If set for mono operation, up to three D SERIES-BT1A modules may be daisy chained to a single three-pair Format-A receiver. Connections between Format-A modules and Format-A receivers use standard CATx cable with RJ45 connectors.
The D SERIES-BT1A modules are powered by the Format-A receiver. The installer can customize the module name and programming password through Bluetooth using a smartphone, computer, or tablet terminal program. These modules feature studio-quality circuits and analog filters to provide audio performance exceeding expectations from consumer interface technologies. High performance, simplicity of operation, and efficiency of installation make RDL the best value in professional Bluetooth interfaces.
- Bluetooth audio input for installed sound system
- Intuitive single-button pairing with LED status indication
- Special software is not required for module setup
- Customize the module ID name and programming password through the Bluetooth connection
- Sends received Bluetooth audio to RDL Format-A receivers
- Mono-summed or stereo audio input mode is switch-selectable on the rear panel
- The rear-panel switch selects which RJ45 pair (A, B, or C) is fed in mono-summed mode
- Daisy-chain up to three D SERIES-BT1A modules to one Format-A receiver in mono mode
- Remotely powered through twisted pair cable
- Signal and power pair pass-through on RJ45 jacks
