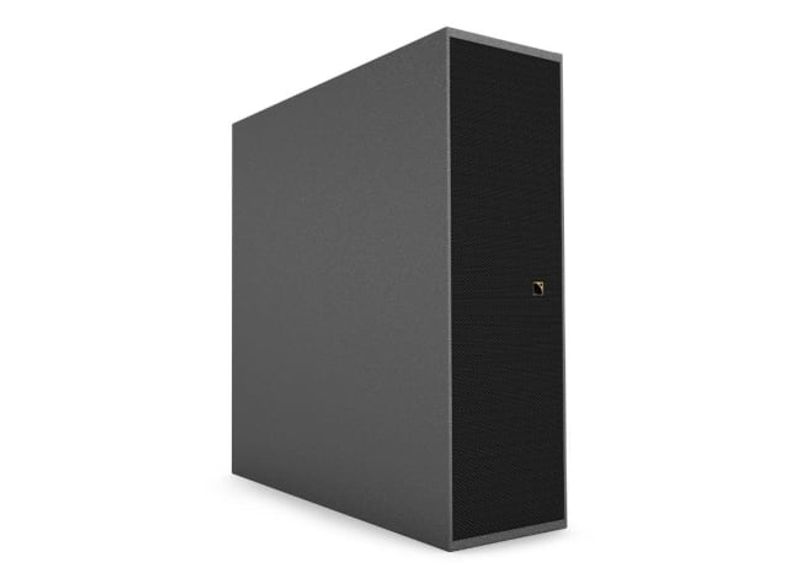

Ultra compact subwoofer: 1 × 10’’ amplified by LA2Xi / LA4X / LA8 / LA12X
Low-frequency limit (-10 dB): Preset [SB10_100] 27Hz, Preset [SB10_200] 29Hz
Maximum SPL¹,²+: 122 dB, 124 dB
Nominal directivity: Standard
Transducers: 1 × 10’’ cone driver
Acoustical load: Bass-reflex, L-Vents
Nominal impedance: 8 Ω
Connectors: 4-point terminal block with push-in connection and connector sealing plate
Rigging and handling: 8 x M6 inserts for external rigging kits in on-wall integration
Weight (net): 15 kg / 33 lb
Cabinet: Premium grade Baltic birch plywood
Front: Coated steel grill Acoustically neutral 3D fabric
Finish: Dark grey-brown Pantone 426 C Pure white RAL 9010 Custom RAL code on special order
IP: IP55
¹ Peak level at 1 m under half-space conditions using pink noise with crest factor 4 (preset specified in brackets).
² For Max SPL values using LA2Xi, refer to LA2Xi system specification sheet
