Informasjon

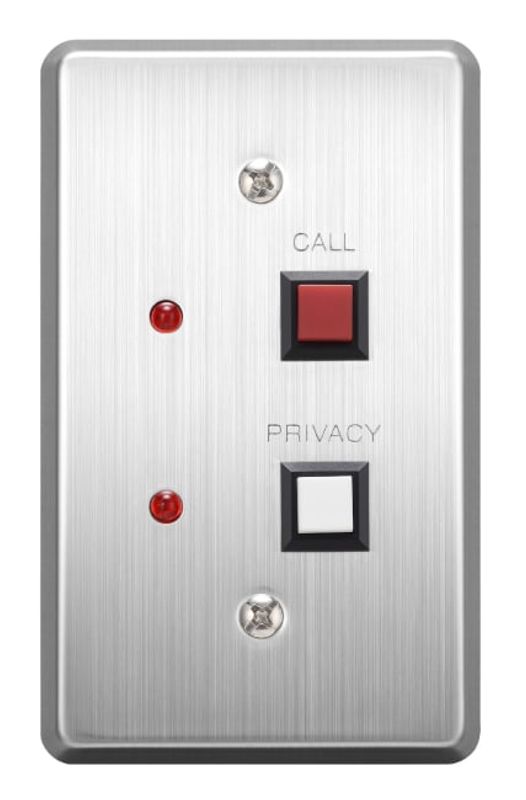

Switcpanel fra TOA.
Spesifikasjoner:
| Call Button | Momentary |
|---|---|
| Privacy Button | Latching |
| Indicator | When called : Status indicator (red) flashing In conversation : Status indicator (red) lit In privacy : Privacy indicator (red) lit |
| Wiring | Two-core shielded cable |
| Transmission Range | 0.5 km (546 yd)/?0.5 mm (AWG24) 0.8 km (874 yd)/?0.65 mm (AWG22) 1.3 km (1421 yd)/?0.9 mm (AWG19) |
| Operating Temperature | 0 ? to +40 ? (32 *F to 104 *F) |
| Finish | Plate: Stainless steel, hairline Call Button: resin, red Privacy Button: resin, white |
| Dimensions | 70 (W) × 115 (H) × 28.6 (D) mm (2.76 × 4.53" × 1.13")" |
| Weight | 80 g (0.18 lb) |
| Accessory | Mounting bracket
1, bracket mounting screw (No.6-32UNC × 18)
2, Box mounting screw (M4 × 30) 2, Box mounting screw (No.6-32UNC × 30) 2 |
| Applicable Box | Flush-mount box: YC-801 (option) Wall-mount box : YC-802 (option) |
