Informasjon

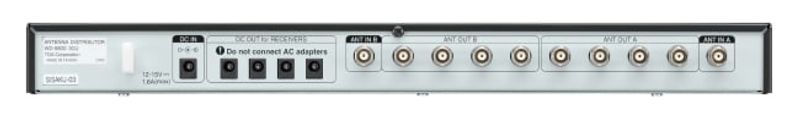

Antennesplitter fra TOA.
Spesifikasjoner:
Spesifikasjoner:
| Power Source | AC mains (supplied AC adapter must be used) |
|---|---|
| Power Consumption | 25 W or less |
| Current Consumption | 1.6 A (12 - 15 V DC) |
| Frequency Range | VHF/UHF |
| Antenna Input | 2 inputs per distribution channel (front × 1, rear × 1), 75 ?, BNC (phantom power for antenna) |
| Antenna Output | 4 outputs per distribution channel, 75 ?, BNC |
| DC Power Supply | 4 outputs (each output: 12 V DC/250 mA) (Output voltage of this unit depends on that of AC adapters.) |
| Indicator | Power lamp |
| Operating Temperature | -10 ? to +50 ? (14 *F to 122 *F) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Panel: Aluminum, black, paint Case: Steel, black, paint |
| Dimensions | 420 (W) x 44 (H) x 214 (D) mm (16.54"x 1.73" x 8.43") |
| Weight | 2 kg (4.41 lb) |
| Accessory | AC adapter (*1) 1, Power cord (2 m (6.56 ft)) (*1) 1, DC cable 4, Rubber foot 4 |
| Option | Rack mounting bracket: MB-15B |
