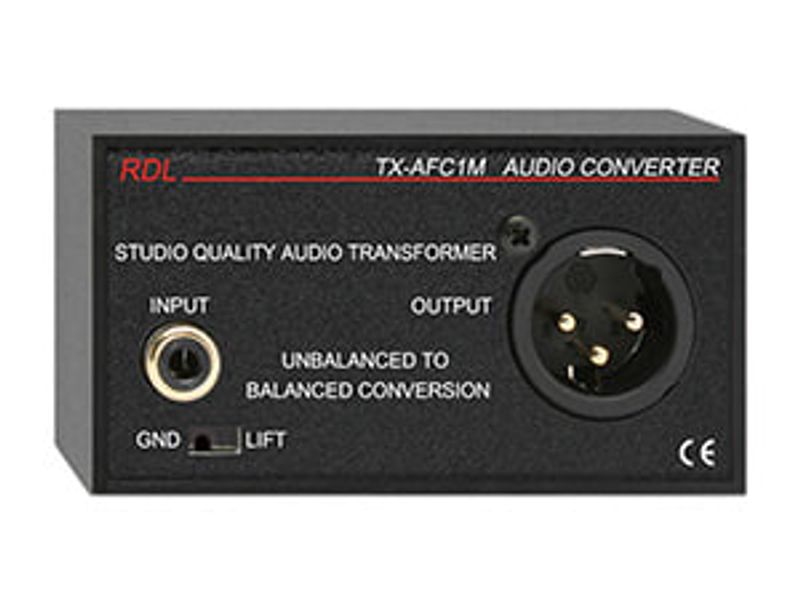

TX-AFC1M Unbalanced to Balanced Audio Transformer - RCA, XLR
- Studio Quality Bifilar Audio Transformer
- Connectorized Audio Format Conversion
- Galvanic Isolation with the Convenience of RDL TXs
- Gold Contacts on Input and Output
- Unbalanced to Balanced Conversion
- Unity Gain
- Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
- THD: < 0.06% (50 Hz to 20 kHz, -10 dBV input)
0.0015% (Typ. 1 kHz, -10 dBV input) - Input: -10 dBV (+22 dBu max.), 10 k? Phono jack
- Insertion Loss: 0.25 dB (20 ? source; 10 k? load)
- Insertion Loss: 0.25 dB (20 ? source; 10 k? load)
