Informasjon
Produktinformasjon:

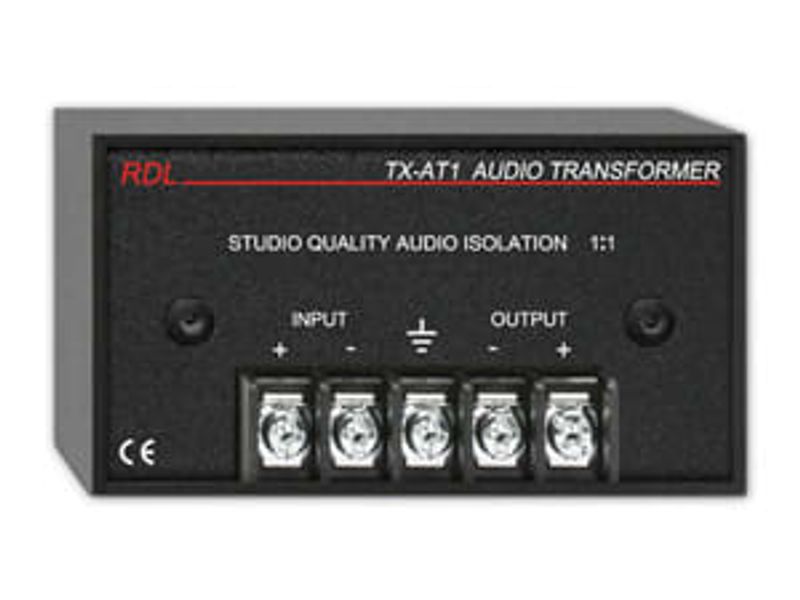

- Studio Quality Bifilar Audio Transformer
- Terminal Block Transformer Connections
- Galvanic Isolation with 1:1 Transformer Coupling
- Transformer to Drive 600 Ohm Line
- Convenience of RDL® TXs
- Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
- THD: < 0.035% (50 Hz to 20 kHz, +4 dBu input)
0.001% (Typ. 1 kHz, +4 dBu input) - Input / Output Level: +4 dBu, +22 dBu max.
- CMRR: > 85 dB (balanced input, 50 to 60 Hz)
