Produktinformasjon:

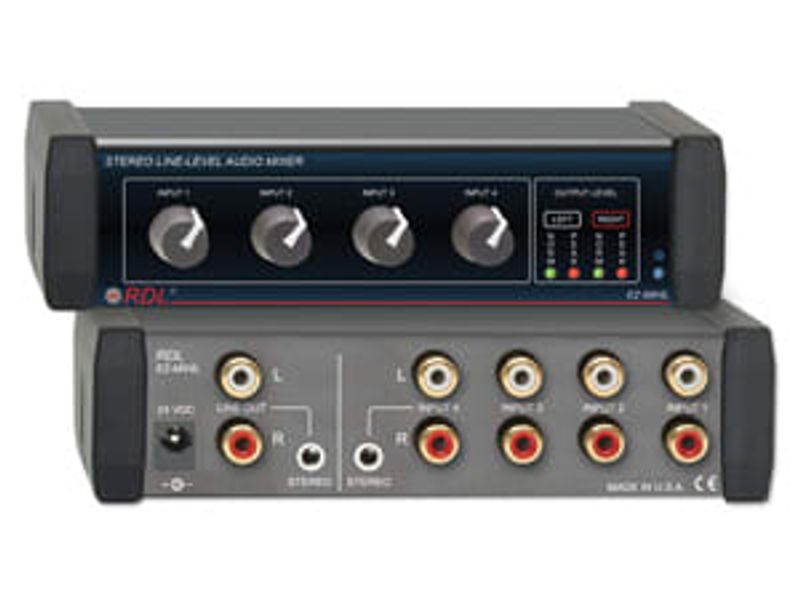

The RDL EZ-MX4L is a stereo audio mixer with 4 line inputs with all line inputs connecting through RCA jacks; 1 input also includes a MINI-jack input. Left and right channel LED VU meters facilitate easy adjustment of levels. The line output is available via stereo RCA jacks or MINI-jack. The EZ-MX4LX is great for houses of worship, restaurants, clubs, meeting rooms, studios, home component systems and commercial sound systems. This particular unit includes worldwide power supply with a selection of international plugs (please specify when ordering).
RDL EZ-MX4L Features/Advantages:
RDL EZ-MX4L Specifications:
The RDL EZ-MX4L is a stereo audio mixer with 4 line inputs with all line inputs connecting through RCA jacks; 1 input also includes a MINI-jack input. Left and right channel LED VU meters facilitate easy adjustment of levels. The line output is available via stereo RCA jacks or MINI-jack. The EZ-MX4LX is great for houses of worship, restaurants, clubs, meeting rooms, studios, home component systems and commercial sound systems. This particular unit includes worldwide power supply with a selection of international plugs (please specify when ordering).
RDL EZ-MX4L Features/Advantages:
- 4-Channel Line-Level Audio Mixer
- (3) Unbalanced Line Inputs on RCA Jacks
- (1) Line Input on MINI or RCA Jacks
- Unbalanced Output on MINI or RCA Jacks
- Dual-LED VU Meter for Each Channel
- Headroom Accomodates High Input Level
- Exceptional Headroom for an Unbalanced Mixer
- Gold-Plated RCA Input and Output Jacks
- Audio VU Metering Facilitates Easy Adjustment
RDL EZ-MX4L Specifications:
- Inputs (5): > 10 kOhms, -10 dBV nominal on RCA jacks (4) or Mini Jack (1), +20 dBV max.
- Level controls (4): Off to 12 dB gain
- Outputs (2): -10 dBV nominal on RCA jacks (1) or Mini jack (1, stereo), +16 dBV max.
- Frequency Response: 10 Hz to 20 kHz (±0.01 dB, line)
- THD+N: < 0.05%
- Crosstalk: < -72 dB (1 kHz)
- Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
- Noise: < -85 dB (below -10 dBV output)
- 24 Vdc power supply current: 30 mA (idle), 60 mA (max.)
- Case dimensions (W x D): 5.75" x 3" (14.6 x 7.6 cm)
- Mounting size: 1/3 rack width
- Package Type: Cardboard Box
- Package Dimensions: 9.5" x 7" x 2.25"
- Shipping Weight: 0.985 lbs
- WEEE weight: 0.59 lbs

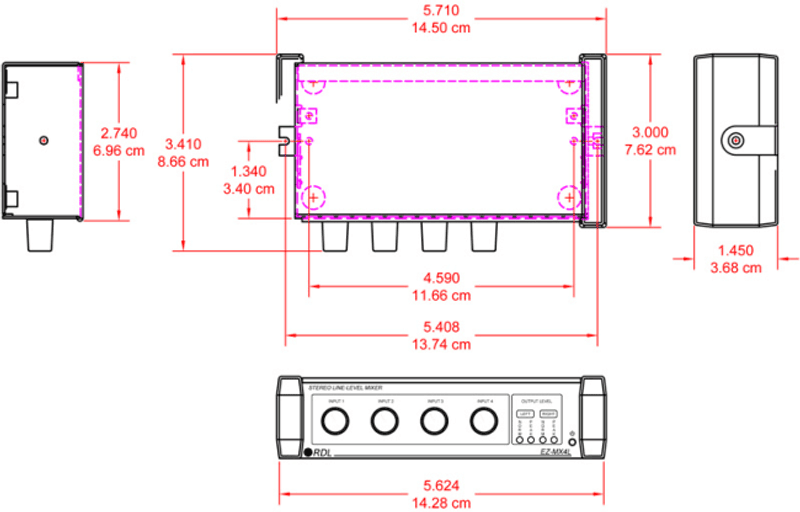

- Dimensional Illustration:
- Typical Application Diagram (laptop, MP3 player, CD player, mixer, and audio recorder all sold separately)
