Features:
- Four Input Source Selection
- Unbalanced Stereo Audio Inputs and Output
- Inputs and Line Output on Rear-Panel RCA Jacks
- Line Output Switchable Fixed (Unity Gain) or Variable
- Variable Output Follows Front-Panel Level Control
- Headphone Output on 1/4" (6.3 mm) and MINI Jacks
- Headphone Output Follows Front-Panel Level Control
- Full-Size Interlocking Pushbuttons on Front Panel
Advantages:
- Easy-to-Push Large Buttons
- Solid-State Audio Switching
- Switch Noise Cannot Affect Signal Quality

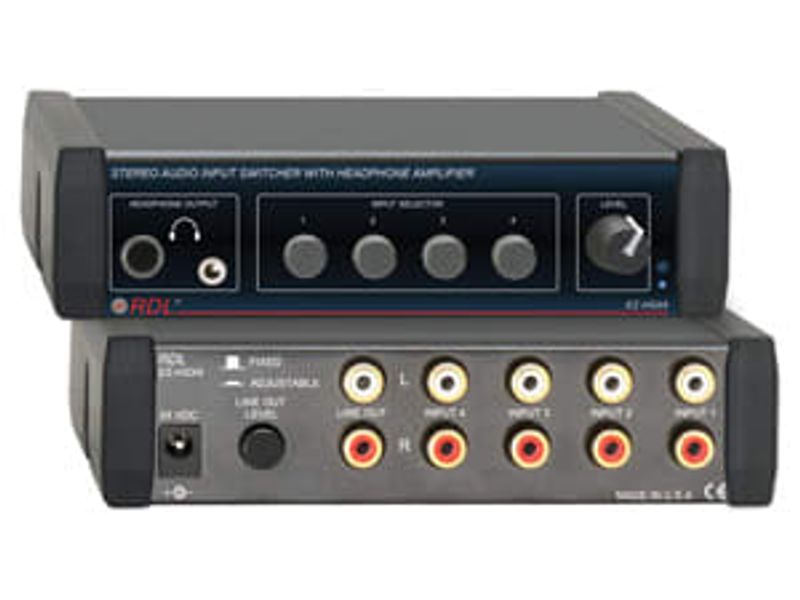

The EZ-HSX4 is a stereo audio source selector with an output volume control. Line-level and headphone outputs are provided. This unit is ideal as a four input headphone amplifier and as a source selector feeding an associated audio amplifier. The EZ-HSX4 is used in stores, houses of worship, studios, sound booths, home component systems and commercial sound systems.
Spesifikasjoner:
