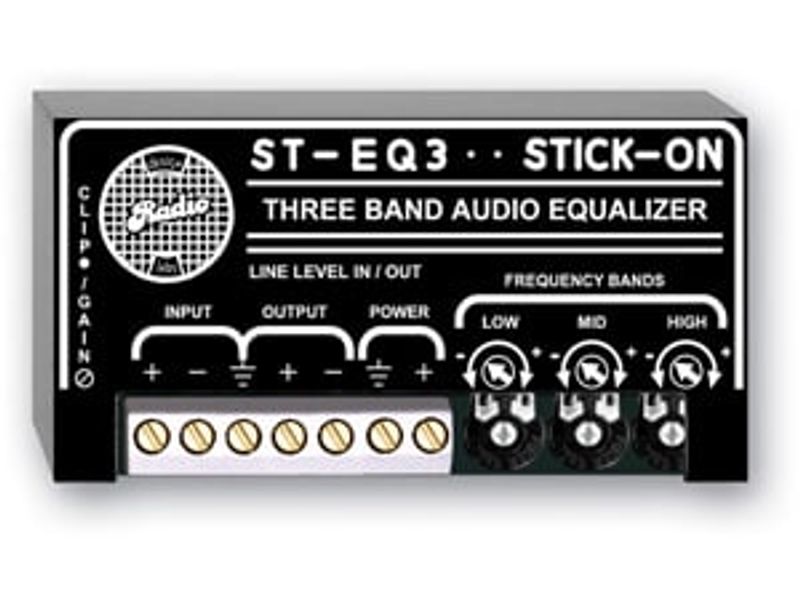

The ST-EQ3 is a miniature wall and surface mount three-band equalizer from RDL that features a balanced bridging input, which may be connected unbalanced if desired. The output driver is 150 ? balanced, and is intended to drive unbalanced or balanced lines of 150 ? or higher impedance.
Equalization is accomplished by three active circuits, each controlling a separate audio band. These bands were carefully selected to yield a module that works effectively in a wide variety of systems. Setup of the ST-EQ3 is assisted by a peak overload LED which indicates excessive pre or post EQ levels.
Equalization is accomplished by three active circuits, each controlling a separate audio band. These bands were carefully selected to yield a module that works effectively in a wide variety of systems. Setup of the ST-EQ3 is assisted by a peak overload LED which indicates excessive pre or post EQ levels.
Wall-mount three-band audio equalization
Custom tailored audio bandwidth
Center band optimized for voice-band enhancement
High and low bands create "smile-curve" EQ for music material
Low noise and distortion equalization
