Informasjon

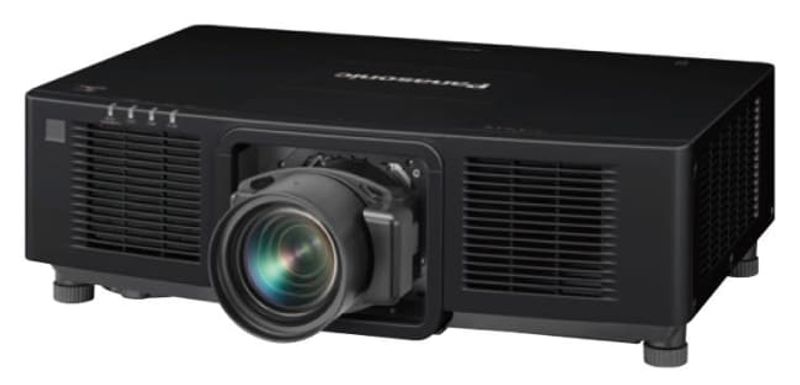

Laser, WUXGA, Uten Linse, D-Link, 3G-SDI
| PROJECTOR TYPE | LCD projector |
|---|---|
| LCD Panel | |
| Panel size |
25.4 mm (1.0 in) diagonal (16:10 aspect ratio) |
|
Display System |
Transparent LCD panel (x 3, R/G/B) |
| Drive Method | Active matrix |
| pixels |
2,304,000 (1920 x 1200) pixels |
|
Light source |
Laser diode |
|
Light output*1*2 |
11,000 lm |
|
Time until light output declines to 50 %*3 |
20,000 hours (NORMAL/QUIET) |
| Resolution |
WUXGA (1920 x 1200 pixels) |
|
Contrast ratio*1 |
3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [3].) |
| Screen size (diagonal) |
2.03–12.7 m (80–500 in), 2.54–10.16 m (100–400 in) with ET-EMU100 (TBD), 16:10 aspect ratio |
| Center-to-corner zone ratio*1 | 85 % |
| Lens |
Optional (no lens included with this model) |
| LENS SHIFT (From the origin point of the lens mounter) |
|
| Vertical |
±60 % (+50 %, -20 % with ET-EMU100, ±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered) |
| Horizontal |
±20 % (±19 % with ET-EMW200) (powered) |
| Keystone correction range | Vertical: ±40 ° (±5 ° with ET-EMU100, ±14 ° with ET-EMW200/ET-EMW300, ±22 ° with ET-EMW400/ET-EMW500), Horizontal: ±40 ° (±0 ° with ET-EMU100, ±8 ° with ET-EMW200/ET-EMW300) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |
| Installation |
Ceiling/floor, front/rear, free 360-degree installation |
| TERMINALS | |
| SDI In |
BNC x 1: 3G/HD-SDI input |
| HDMI In |
HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input4), CEC supported |
| Serial/Multi Projector Sync In |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Serial/Multi Projector Sync Out |
D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Remote 1 In |
D-sub 9-pin (female) × 1 for external control (parallel) |
| Remote 2 In |
M3 x 1 for wired remote control |
| Remote 2 Out |
M3 x 1 for link control (for wired remote control) |
| DIGITAL LINK/LAN |
RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input4 ) |
| LAN |
RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net) |
| DC Out |
USB Connector (Type A) x 1 for power supply (Output 5 V/2 A) |
| USB |
USB Connector (Type A) x 1 for service use |
| POWER SUPPLY | AC 100–240 V, 50/60 Hz |
|
Power consumption |
Max. Power Consumption: 580 W (5.8A-2.5A) (590 VA) (TBD) [NORMAL] 530 W (TBD) [QUIET] 370 W (TBD) |
|
Cabinet materials |
Molded plastic |
| Filter*6 | Included (Estimated maintenance time: approx. 20,000 hours 5) |
|
Operation noise*1 |
36 dB (NORMAL) (TBD) |
|
Dimensions |
Approx. 650 x 2116 x 440 mm7 (TBD) |
|
Weight *8 |
Approx. 23.3 kg (51.6 lbs) (TBD) |
|
Operating environment |
Operating temperature: 0–45 °C (32–113 °F)9, operating humidity: 10–80 % (no condensation) |
|
Applicable software |
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
