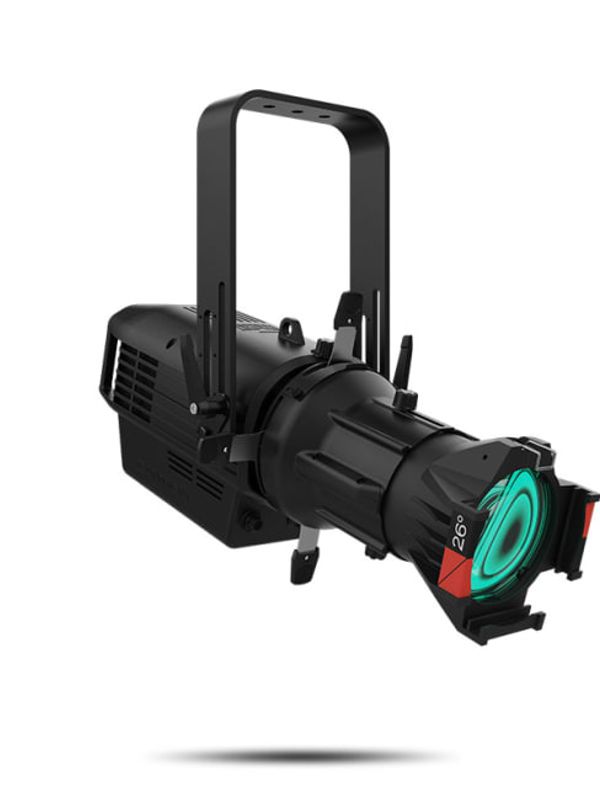

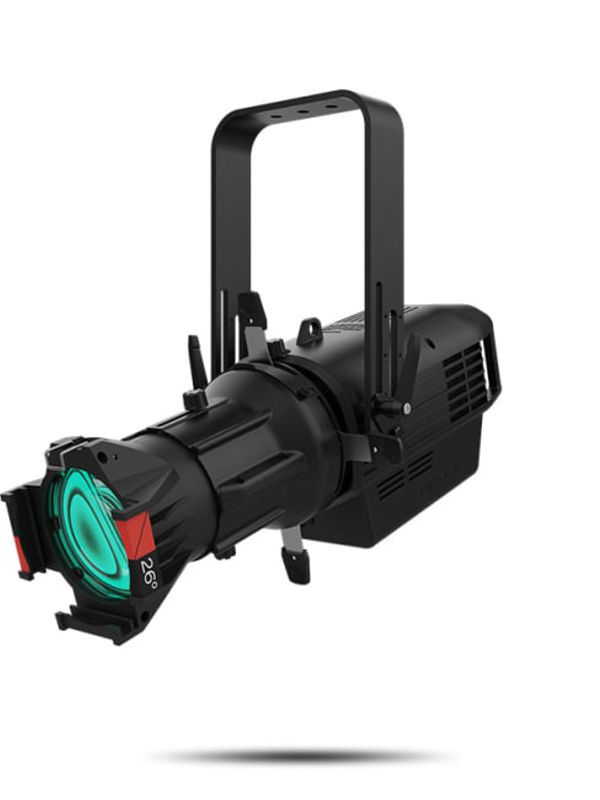

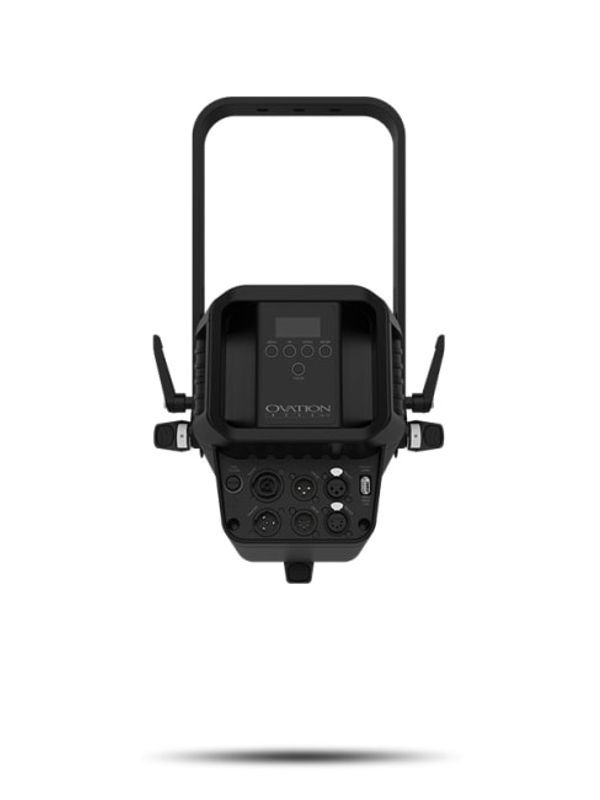

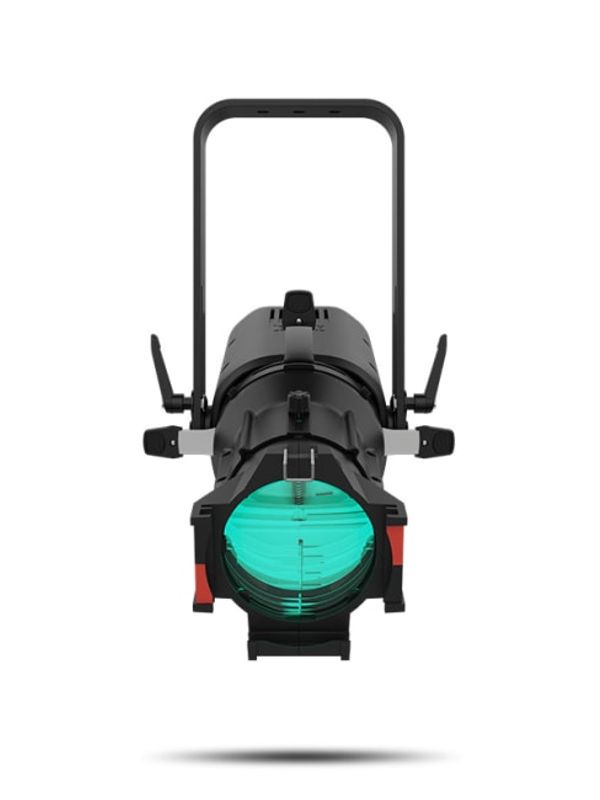

Ovation Rêve E-3 is the brightest multi-color LED ellipsoidal that also has the capability of producing perfectly tunable whites. It’s a new kind of epic story-telling machine that fuses the best of both worlds into one totally reimagined LED light source. Color Temperature presets ranging from 2800K to 8000K maintain outstanding brightness and high quality of light, with an emulated “red shift” for a tungsten feel. Ovation Rêve E-3 also features several dimming curves, a virtually silent operation with fan-off modes, and a series of technician-friendly features such as an innovative, adjustable yoke that makes mounting in low clearance situations a breeze. With Ovation Rêve E-3, you can seamlessly transition from captivating a wide range of saturated colors in class-leading output to distinct whites with +/- green adjustments using one fixture. No ifs or buts. Simply and categorically unrivaLED.
-
Full-spectrum LED ERS-style lighting fixture for theatre, film, and production
-
Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
-
Virtual color wheel with color matched to popular gel colors
-
+/- Green adjustment and emulated red-shift via DMX or on-board control
-
RDM (Remote Device Management) for added flexibility
-
Adjustable PWM (Pulse Width Modulation) to avoid flickering on the camera
-
Virtually silent operation for use in studio, film, and theatre applications
-
Ultra-smooth 16-bit dimming curves and speeds complement any lighting scheme.
-
Innovative adjustable yoke for mounting in low clearance areas
-
Direct power/data connection and control options for the Ovation GR-1 gobo rotator
-
USB port for fixture software updates
OPTICAL
- Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy (L70)
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 5470K
- CRI (3200 K): 95.4
- Beam Angle (w/5° lens): 4.6°
- Beam Angle (w/10° lens): 10°
- Beam Angle (w/14° lens): 14.8°
- Beam Angle (w/19° lens): 18.5°
- Beam Angle (w/26° lens): 26°
- Beam Angle (w/36° lens): 33.3°
- Beam Angle (w/50° lens): 49.5°
- Beam Angle (w/15°–30° lens)(Narrow): 13°
- Beam Angle (w/15°–30° lens)(Wide): 28.5°
- Beam Angle (w/25°–50° lens)(Narrow): 23.6°
- Beam Angle (w/25°–50° lens)(Wide): 40.5°
- Field Angle (w/5° lens): 5.6°
- Field Angle (w/10° lens): 11.1°
- Field Angle (w/14° lens): 16°
- Field Angle (w/19° lens): 21.6°
- Field Angle (w/26° lens): 29.6°
- Field Angle (w/36° lens): 37.1°
- Field Angle (w/50° lens): 55.7°
- Field Angle (w/15°–30° lens)(Narrow): 15.4°
- Field Angle (w/15°–30° lens)(Wide): 32.2°
- Field Angle (w/25°–50° lens)(Narrow): 25.8°
- Field Angle (w/25°–50° lens)(Wide): 44.1°
- Lumens (w/5° lens): 5,076
- Lumens (w/10° lens): 11,250
- Lumens (w/14° lens): 12,179
- Lumens (w/19° lens): 12,156
- Lumens (w/26° lens): 13,300
- Lumens (w/36° lens): 13,223
- Lumens (w/50° lens): 12,216
- Lumens (w/15°–30° lens): 12,057
- Lumens (w/25°–50° lens): 14,355
- Illuminance (w/5° lens): 31,856 lux @ 5 m
- Illuminance (w/10° lens): 18,924 lux @ 5 m
- Illuminance (w/14° lens): 9,284 lux @ 5 m
- Illuminance (w/19° lens): 5,635 lux @ 5 m
- Illuminance (w/26° lens): 3,378 lux @ 5 m
- Illuminance (w/36° lens): 2,085 lux @ 5 m
- Illuminance (w/50° lens): 870 lux @ 5 m
- Illuminance (w/15°–30° lens)(Narrow): 9,292 lux @ 5 m
- Illuminance (w/15°–30° lens)(Wide): 2,671 lux @ 5 m
- Illuminance (w/25°–50° lens)(Narrow): 3,710 lux @ 5 m
- Illuminance (w/25°–50° lens)(Wide): 1,527 lux @ 5 m
- Barrel Rotation: +/- 25°
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Focus: Manual
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
- Dimensions (fixture only, yoke up): 20.44 x 13.07 x 20.53 in (519 x 332 x 522 mm)
- Dimensions (w/5° lens extended, yoke up): 41.60 x 14.17 x 21.42 in (1056 x 360 x 544 mm)
- Dimensions (w/10° lens extended, yoke up): 32.87 x 13.07 x 20.01 in (835 x 332 x 510 mm)
- Dimensions (w/14° lens extended, yoke up): 29.7 x 13.07 x 20.53 in (755 x 332 x 522 mm)
- Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up):26.83 x 13.07 x 20.53 in (681 X 332 X 522 mm)
- Dimensions (w/15°–30° lens, yoke up): 33.02 x 13.52 x 20.53 in (839 x 343 x 522 mm)
- Dimensions (w/25°–50° lens, yoke up): 25.74 x 13.52 x 20.53 in (838 x 343 x 522 mm)
- Weight (fixture only): 18.6 lb (8.4 kg)
- Weight (w/5° lens): 26 lb (11.7 kg)
- Weight (w/10° lens): 24 lb (10.8 kg)
- Weight (w/14° lens): 25.6 lb (11.6 kg)
- Weight (w/26° lens): 24.2 lb (10.9 kg)
- Weight (w/15°–30° lens): 32.3 lb (14.6 kg)
- Weight (w/25°–50° lens): 29.8 lb ( 13.5 kg)
- Exterior Color: Black
- Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
- Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
- Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
- Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
- Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
- Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
- Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
- Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)
CONNECTIONS
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
- Software Connection: USB
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
- Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
- Power and Current: 367 W, 3.04 A @ 120 V, 60 Hz
- Power and Current: 356 W, 1.76 A @ 208 V, 60 Hz
- Power and Current: 353 W, 1.59 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET, FCC
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
- Ovation Reve E-3
- Seetronic Powerkon power cord
- Ovation Metal Gobo Holder
- Soft Focus Filter
REQUIRED ACCESSORIES
- Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°
OPTIONAL ACCESSORIES
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- TRUE1 Style Power Extension Cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- RDM2go
- Ovation Glass Gobo Holder
- Ovation Metal Gobo Holder
- Ovation Iris
- USB Jump Drive
