High port density in a half 19? install enclosure

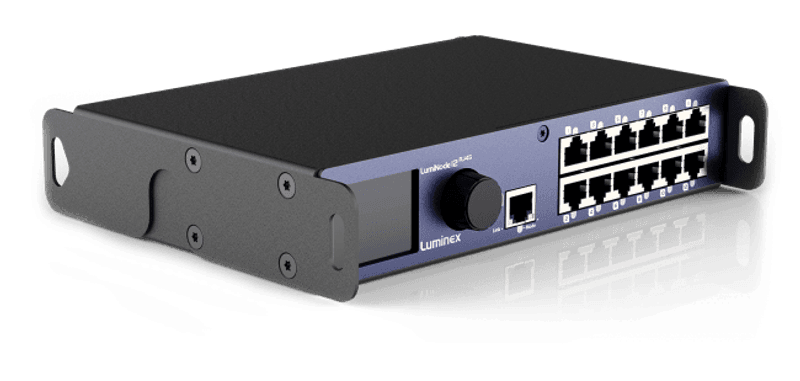

LumiNode 12 RJ45 is specifically designed with a metal, robust half 19? enclosure for single or dual rack mounting, making it an ideal solution for theatre- and studio installs. Achieving up to 24 outputs in a 1U rack space. The RJ45 DMX connectivity makes it possible to integrate with common and cost effective infrastructure with Cat5e (or higher) cabling.

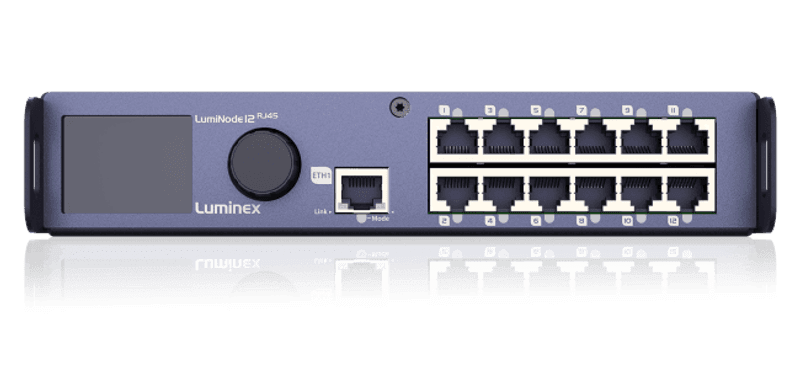

Equipped with 2x 1Gb Ethercon ports and 12x RJ45 DMX ports LumiNode 12 RJ45 offers a high DMX port count in only a half unit rack space.
Each DMX port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted in 16 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.
