- HDCP 2.2, HDMI2.0, and DVI compatible
- Built-in Dolby Digital Decoder
- Built-in DTS 2.0+Digital Out Decoder
- Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
- Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 4096×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV444) & 4096×2160@50/60 (YUV444)
- Supports simultaneous audio outputs on HDMI, analogue L/R, Coaxial and Optical
- Supports Dolby Digital sampling rates up to 48kHz
- Supports DTS sampling rates up to 96kHz
- Supports LPCM input sampling rates up to 96kHz
- Supports coaxial and optical output audio sampling rates up to 96kHz
- Supports up to 3m HDMI cables on input & output
| Inputs | 1x HDMI [1x HDMI 2.0 (ARC) Uncompressed AV and Data] |

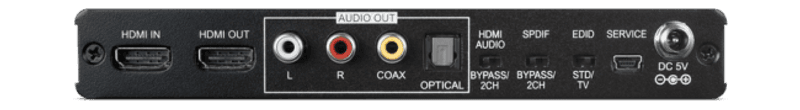

| Outputs | 1x HDMI [1x HDMI 2.0 Uncompressed AV and Data] 2x RCA [1x Analogue audio Stereo (L/R)] 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM] 1x RCA [1x Coaxial Dolby Digital / DTS / 2 Channel LPCM] |
| PSU | 5V/2.6A |
| Dimensions | 180mm [W] x 25mm [H] x 104mm [D] |
| Net Weight | 380g |
| Gross Weight | 740g |
