The Tesira EX-OUT is a half-rack expander box for use with AVB-enabled Tesira server-class devices. The EX-OUT is a 4-channel mic or line-level audio output expander. The expander communicates with the Tesira AVB network for audio networking, configuration, and control and is powered by PoE+.
- Four channels of balanced mic or line-level output
- -100 to +12dB fader range for level
- Signal invert for reverse polarity
- Selectable full-scale output reference level (24dBu, 18dBu, 12dBu, 6dBu, 0dBu, -31dBu) for best interface/performance
- Audio and control networking over AVB/TSN
- Powered by PoE+

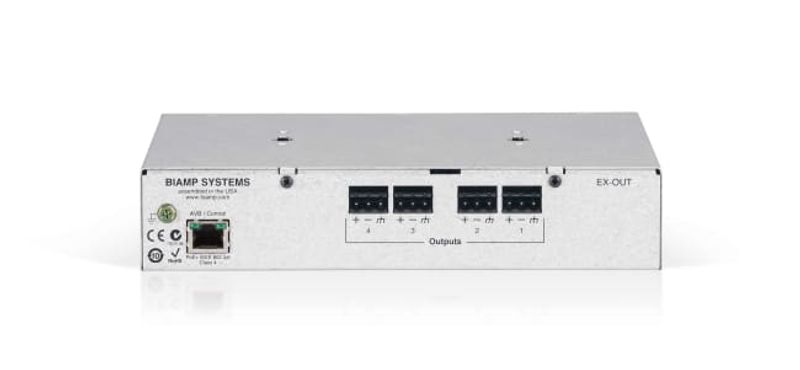

- Plug-in barrier strip connectors

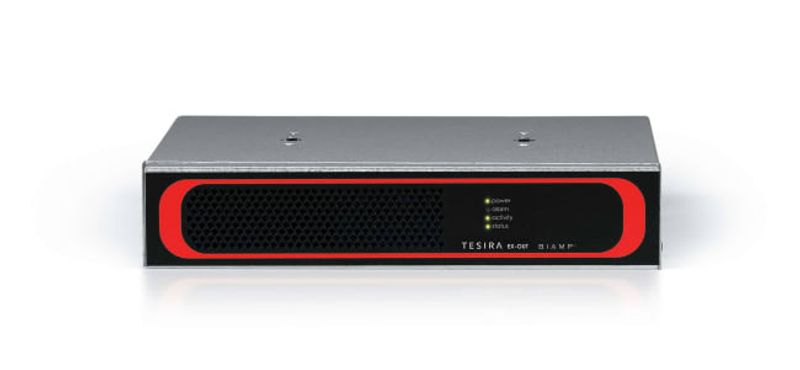

- Front panel LEDs for device status indications
- Half-rack chassis
- RoHS-compliant and AES grounded
- Covered by Biamp Systems’ five-year warranty
