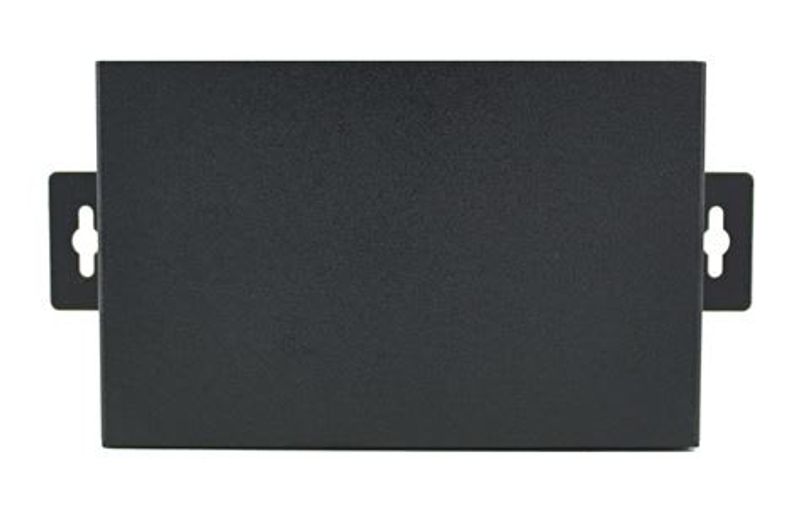

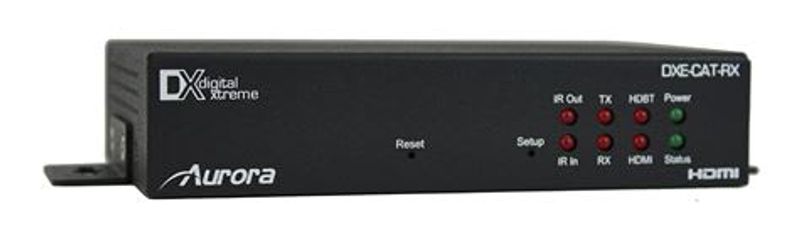

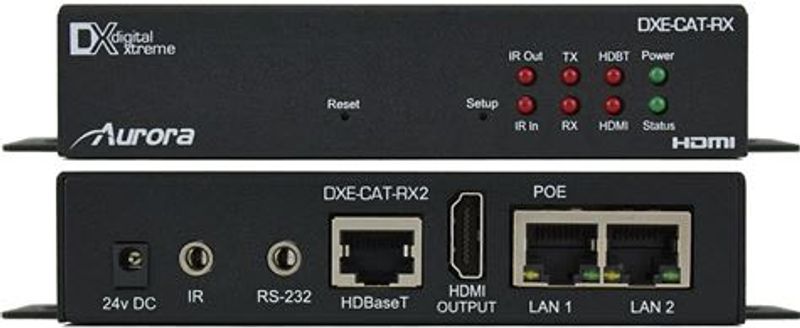

The DXE-CAT-RX2 is part of Aurora’s expanding Digital Xtreme Series and the first of the new HDBaseT CAT extenders. The DXE-CAT-RX2’s powerful design provides usability and features not found anywhere else. Single-sided connections for LAN, HDMI, Control, and Power provide a cleaner wiring and rack mounting solution. The patent pending design allows the system to be powered via POE or AC adapter from either side! With a single CAT 5e/6/7 cable, the DXE-CAT-S2 can go up to 330ft 1080p 60Hz 48bit color depth with bi-directional RS-232, IR, & LAN (up to 600ft with CAT 6a shielded cable at 24bit color depth).
- HDMI® HDBaseT™ Receiver module up to 330ft (600ft with CAT-6a Shielded)
- Dual Port LAN, PoE capable with RS-232 & IR pass-through
- Receiver compatible with any other HDBaseT™ Compliant Transmitter device (PS0080-1 Power Supply and transmitter sold separately)
Power Supply NOT included. Please order separately.
