- Element: Externally polarized (DC bias) condenser
- Polar Pattern: Cardioid
- Frequency Response: 20-20,000 Hz
- Open Circuit Sensitivity: –34 dB (19.9 mV) re 1V at 1 Pa
- Impedance: 200 ohms
- Max. Input Sound Level: 150 dB SPL, 1 kHz at 1% T.H.D.; 149 dB SPL, 1 kHz at 0.5% T.H.D.
- Noise: 19 dB SPL
- Dynamic Range (typical): 131 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: 75 dB, 1 kHz at 1 Pa
- Power Requirements: AT8560a tube microphone powering unit (100-240V AC)
- Weight: Microphone: 645 g - Tube microphone powering unit: 1.3kg
- Dimensions: Microphone: 215.0 mm long - 53.4 mm maximum body Ø Tube microphone powering unit: 212.0 mm W x 131.5 mm D x 46.0 mm H
- Output Connector: 3-pin XLRM-type (on tube microphone powering unit)
- Cables: 7.6 m cable with 6-pin XLR-type connectors for use between microphone and tube microphone powering unit; AC power cable

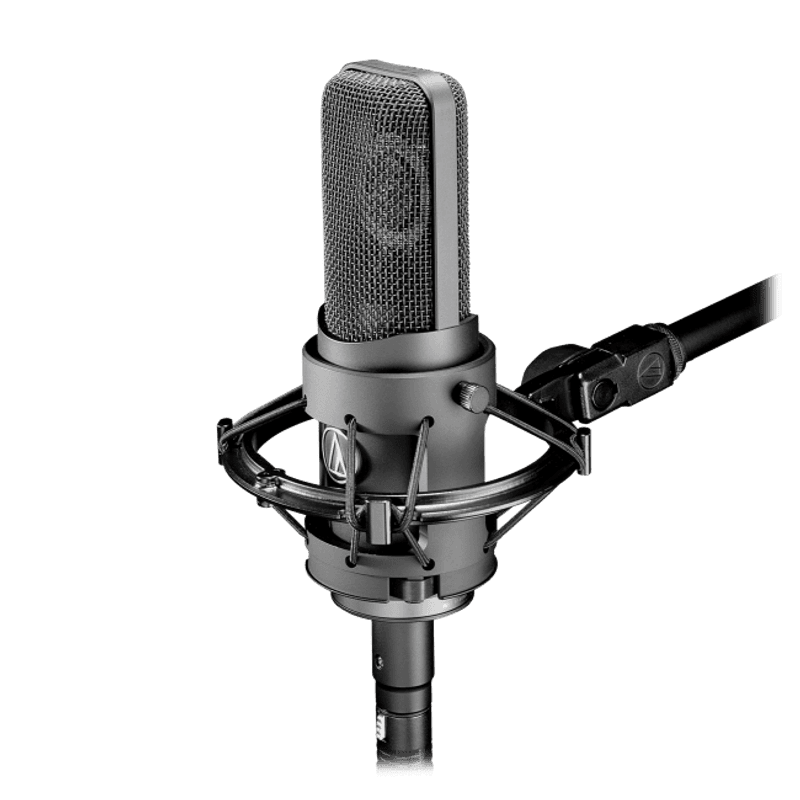

- Accessories furnished: AT8560a tube microphone powering unit; AT8447 shock mount for 5/8”-27 threaded stands; rack-mount adapters for tube microphone powering unit; protective mic carrying case
- Vintage tube sound with the versatile performance necessary for the most demanding studio applications

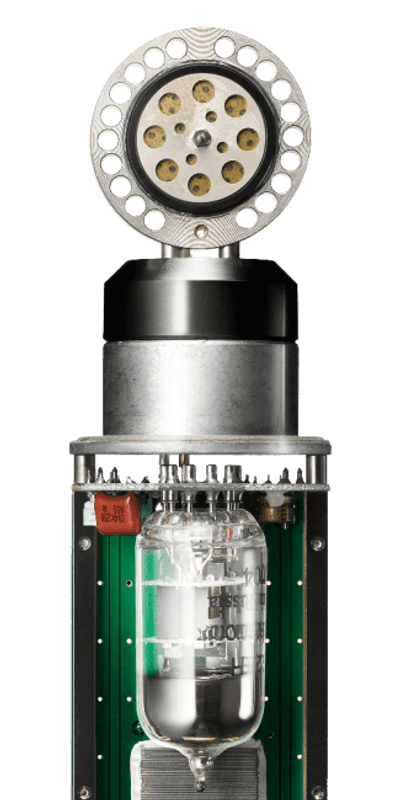

- Hand-selected tubes are individually tested and aged to maintain peak performance
- Regulated and heavily filtered heater current prevents noise contamination of audio signal chain
- Wide dynamic range, low self-noise, and high max SPL capability
- Large coupling transformer provides superior low-frequency linearity
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
