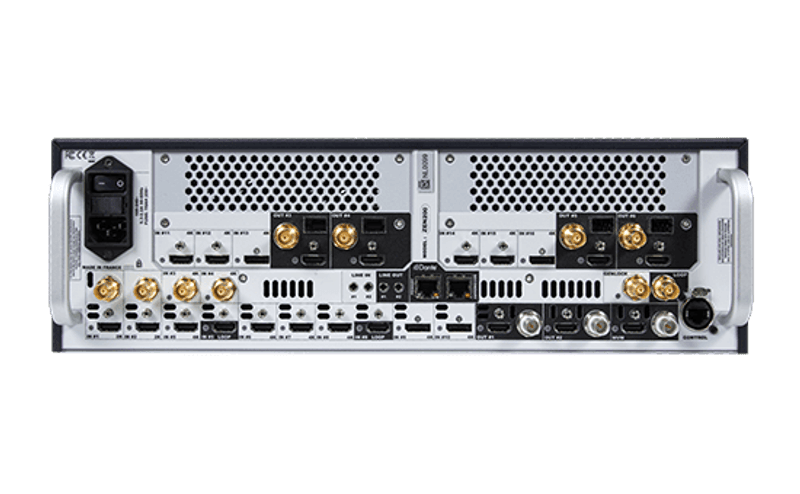

16 INPUTS
8x HDMI 2.0 - up to 4K60 8-bit 4:4:4 or 4K60 12-bit 4:2:2
4x DisplayPort 1.2 - up to 4K60 10-bit 4:4:4 or 4K60 12-bit 4:2:2
2x 12G/6G/3G-SDI (level A & B) - up to 4K60 10-bit 4:2:2
2x HDMI 1.4 or 3G-SDI (user selectable input plug) - up to 2K60 10-bit 4:4:4 (HDMI) or 2K60 10-bit 4:2:2 (SDI)
Support custom input formats up to 4096 width / height
6 ACTIVE OUTPUTS
2 outputs with mirrored HDMI 2.0 and 12G-SDI connectors (level 1 & B)
4 outputs with mirrored HDMI 2.0, 12G-SDI (level A & B) and SFP+ connectors compatible with Analog Way's fiber optic or ST2110 SFP modules
Up to 4K60 8-bit 4:4:4 or 4K60 12-bit 4:2:2 (HDMI)
Up to 4K60 10-bit 4:2:2 (SDI / SFP+)
Support custom output formats up to 4096 width / height
