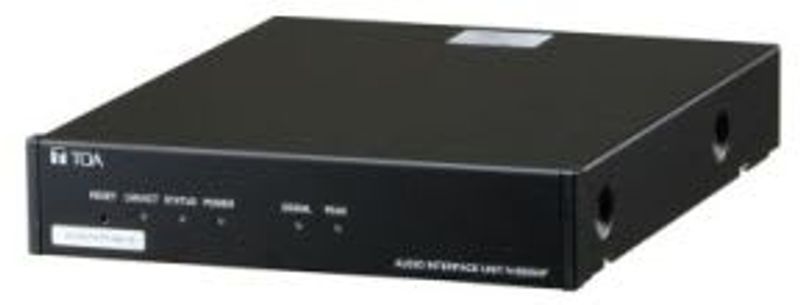

IP Intercom Exchange fra TOA.
- * 0 dB = 1 V
| Power Source | 220 - 240 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 7 W (max.) |
| Audio Input | 1 input (transformer isolated), -58 dB* to 0 dB*, 2 k?, balanced (MIC/LINE input, controllable on the software) with input volume control knob, removable terminal block (3 pins) |
| Audio Output | 1 output (transformer isolated), 0 dB*, 600 ?, balanced, removable terminal block (3 pins) |
| Contact Input | 8 inputs, no-voltage make contact input, open voltage: 24 V DC, short-circuit current: 5 mA or less, removable terminal block (10 pins), (1 common terminal for 4 inputs) |
| Contact Output | 8 outputs, relay contact output, contact capacity: 24 V DC/2 - 500 mA, removable terminal block (16 pins) |
| Time Sync Input | 1 input, no-voltage make contact input, open voltage: 24 V DC, short-circuit current: 5 mA or less, removable terminal block (2 pins) |
| Network Section | Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP Audio packet transmission system: Unicast, Multicast Number of paging destinations: Unicast (max. 8), Multicast (max. 191) Connector: RJ45 connector Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software) Quantifying bit number: 16-bit Voice encoding method: Sub-band ADPCM, Cryptosystem Voice packet loss recovery: Silence insertion Audio delay time: 80 ms, 320 ms (controllable on the software) |
| Indication | Network LNK/ACT indication, Status lamp, Power-on indication lamp, Signal lamp, Peak lamp |
| Other | Firmware update function, System data hold function, Time of day hold facility, Reset switch (front panel) |
| Setting Method | Rack, Desk, Surface mount |
| Operating Temperature | 0 ? to +40 ? (32 ?F to 104 ?F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Pre-coated steel plate, black, 30 % gloss |
| Dimensions | 210 (W) × 44.3 (H) × 267 (D) mm (8.27" × 1.74" × 10.51") |
| Weight | 1.7 kg (3.75 lb) |
| Accessory | Power cord (2 m (6.56 ft))
1, CD (for PC setting, maintenance use)
1, Removable terminal plug (2 pins) 1, Removable terminal plug (3 pins) 2, Removable terminal plug (5 pins) 2, Removable terminal plug (8 pins) 2, Plastic foot 4, Screw for fitting plastic foot 4 |
| Option | Rack mounting bracket: MB-15B-BK (for rack mounting one N-8000AF unit) MB-15B-J (for rack mounting two N-8000AF units) Wall mounting bracket: YC-850 |
