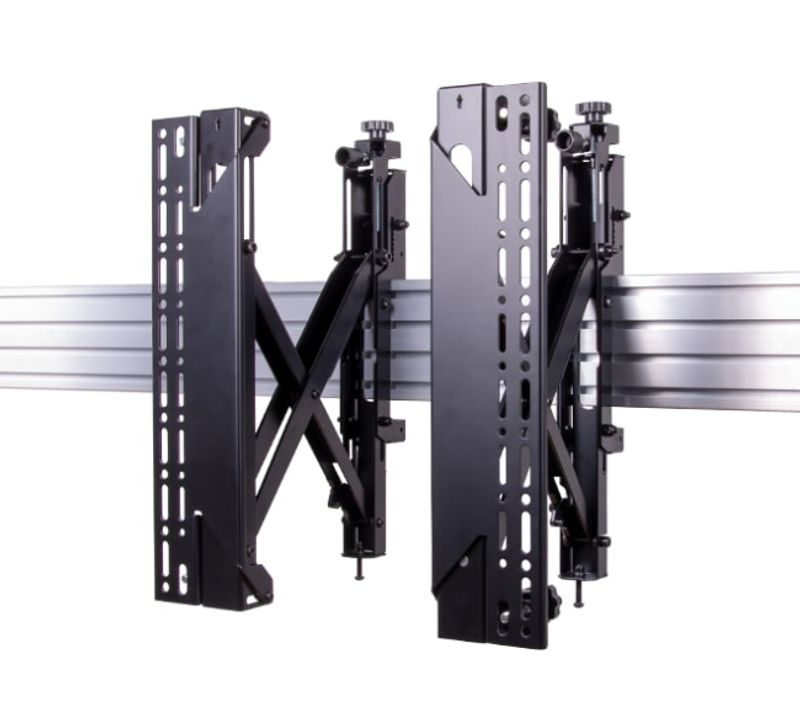

| Ideal for assembling videowalls and other multi-screen applications, these interface arms are designed to mount medium to large sized screens on to System X horizontal mounting rails, providing a solution with easy pop-out access to aid installation and screen maintenance. The universal design is compatible with all videowall screens and the modular design allows an almost endless number of configurations to be assembled, in both landscape or portrait orientations. Tool-less micro-adjustment allows perfect alignment of displays and a mounted depth of 104mm from the wall allows easy access for cables and connectors. |
Features:
- Ideal for videowalls and other multi-screen installations

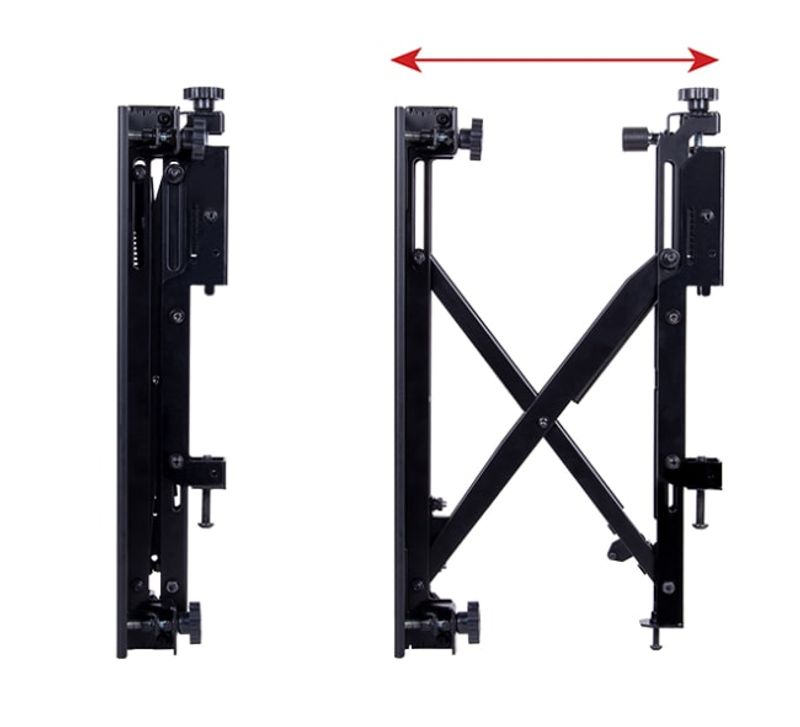

- Push to open / push to close system provides quick and easy service access
- Perfect solution for mounting screens into a recessed wall
- Universal design compatible with most screens
- Suitable for landscape or portrait mounting

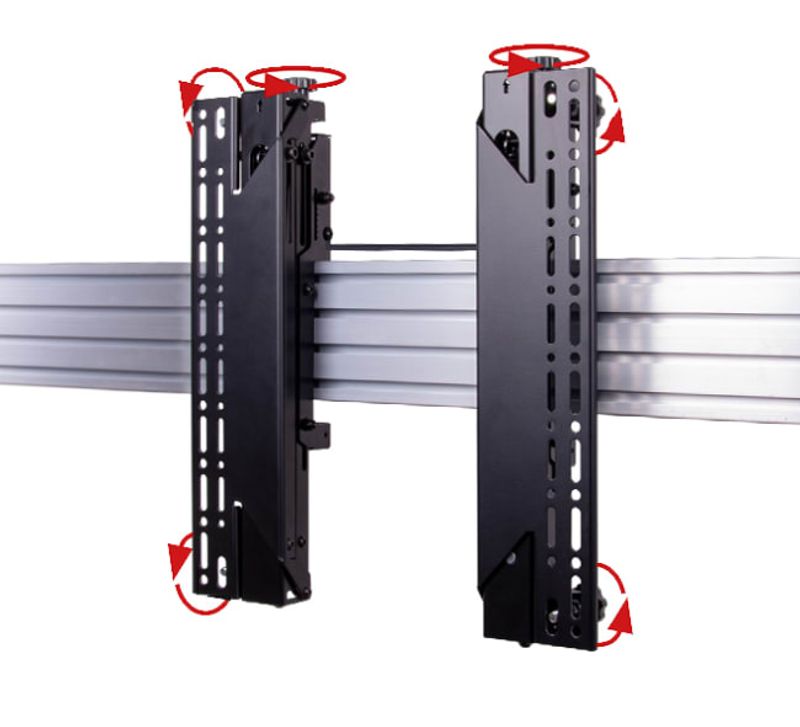

- Tool-less micro-adjustment for seamless display alignment
- Lateral adjustment - position arms anywhere along the length of the rail
- Safety screws help prevent unauthorised removal of screens
- Simple 'hook-on' installation
- All mounting hardware included
Spesifications:
- Recommended screen size: 39" - 70"
- Max load: 50kg
- VESA® & non-VESA fixings: up to 400mm* (vertical dimension)
- Depth: 69mm (+/-10mm depth adjustment)
- Depth Popped-Out: 237mm (+/-10mm depth adjustment)

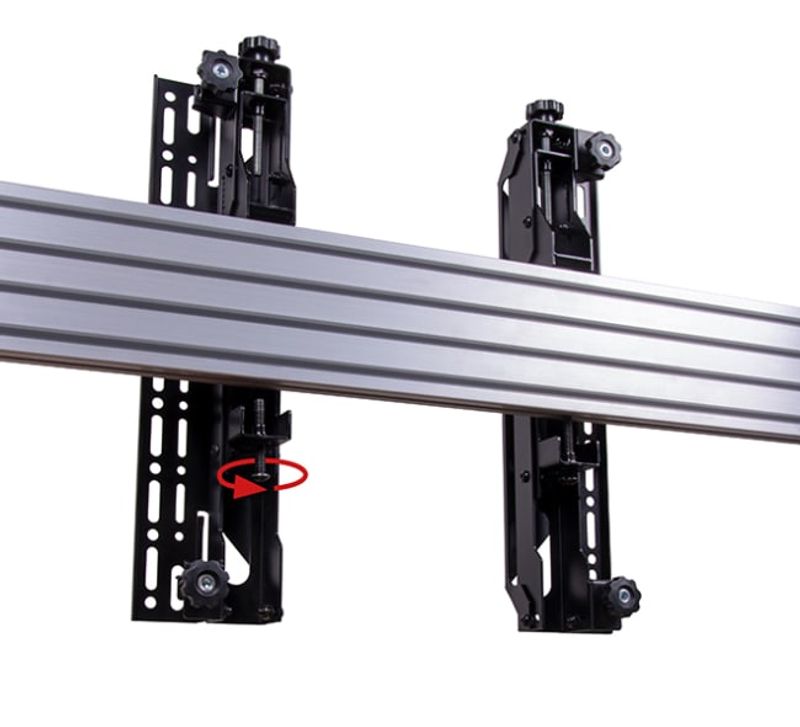

- Height Adjustment: +/- 20mm
- Available in Black
*The VESA specification of the BT8390-VESA400MAP refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary. BT7564 Interface Adaptor Arms can be used to increase the maximum vertical fixings to 600mm for larger screens.
